YANING MOT Modular Operating Room with Laminar Flow Ceiling HEPA Filter and Touch Screen Control Panel for Hospital Surgical Room

Brand Name : YN

Place of Origin : Guangdong, China

MOQ : 100

Price : RM 119.90-259.78

Weight : 1000 kg

Material : Stainless steel, electrolytic steel, glass

Filter type : HEPA Filter

Control Panel : Touch screen 6 Interface

Shadowless lamp : 1 set/room

Filter Media : H13 or H14 glass fiber

Cabinet Material : Aluminum galvanized sheet / powder coated steel / Stainless steel 201/304

Air Speed : 0.25-0.60m/s

Medical Sink Material : 304 stainless steel

Control Panel Type : Capacitive screen, tempered glass

Door Material : Aluminum structure with sealing tape

Medical Cabinet Material : 0.8mm -1.2mm thick SUS304 stainless steel

Air Cleanliness : ISO 5 standard

Installation Type : Modular assembly

Design Style : Modern

Contact Now

Product Description

YANING MOT Solution Medical Laminar Flow Modular Operating Theater Surgical Room for Hospital

Madular Operation Room Panel

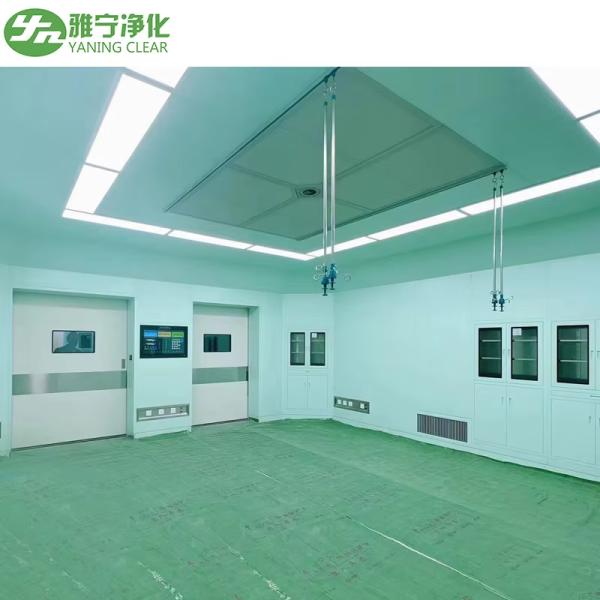

Laminar air flow ceilings ensures efficient protection against contamination which can occur during invasive acts and caused by airborne dead or living particles.
The ceilings are available in square or rectangular shapes in order to suit any room layout and answer specific requirements to create a clean zone around the patient, medical staff and medical devices.
Aerobiologically, the things that generate most airborne contamination in an operating theatre are the staff. The most common unit of contamination (colony forming unit – “cfu”) is a microcolony on an airborne skin scale. That microcolony will contain between 1and 1,000 bacteria. (Microbial numbers are a critical factor in initiation of infection).
A significant purpose of operating theatre ventilation is to prevent airborne bacteria from settling-out in « the wound ».
Our laminar flow ceilings are mainly used with our Clinicair Air Handling Unit, but can be also adapted to any type of products from a different brand. This system is dedicated to operating theatres in order to meet ISO 5 standard (complying with EN ISO 14644-1 ) as well as to pharmaceutical industry. It helps fight cross contamination and hospital borne infections.

CURRENT MAIN REQUIREMENTS FOR LTF CEILING SYSTEMS

Reduction of the germ load of indoor air Surgical smoke removal in the protected area Occupational safety and protection of the surgical staff Compliance with the required air cleanliness class in the protected area Discharge of cooling loads Maintenance of the required room pressure (protective pressure maintenance) Compliance with the ventilation comfort parameters such as air speed, temperature, degree of turbulence, humidity and sound pressure level Adherence
to the defined illuminance of the priming illumination in LTF ceilings Complete ceiling solution for jointless connection to the rest of the ceiling and integration of the room lighting and optionally the ceiling pendants or media bridges The effectiveness and functionality of LTF ceiling systems have meanwhile been proved by numerous studies and confirmed by independent hospital hygiene committees!

YANING MOT Modular Operating Room with Laminar Flow Ceiling HEPA Filter and Touch Screen Control Panel for Hospital Surgical Room

Product Detail

Modular Operation Room Classification

(1) Class I operating room: the sterile clean operating room, which mainly accepts operations such as brain, heart, and organ transplants.
(2) Class II operating room: the sterile operating room, which mainly accepts aseptic operations such as splenectomy, open reduction of closed fractures, intraocular surgery, and thyroidectomy.
(3) Class III operating room: that is, the operating room with bacteria, which accepts operations on stomach, gallbladder,
liver,appendix, kidney, lung and other parts.
(4) Category IV operating room: the infection operating room, which mainly accepts surgery for appendix perforation,
peritonitis,tuberculous abscess, abscess incision and drainage.
(5) Category V operating room: the special infection operating room, which mainly accepts the operation of Pseudomonas aeruginosa, gangrene bacillus, tetanus and other infections.
According to different specialties, the operating rooms can be divided into general surgery, orthopedics, obstetrics and
gynecology, brain surgery, cardiothoracic surgery, urology, burns, and ENT surgery.

Modular Operating Room Grade Standard

Detailed Materials for Operation Room

Laminar Flow Ceiling

Filter Media: H13 or H14 glass fiber
Cabinet Material: Aluminum galvanized sheet / powder coated steel / Stainless steel 201/304
Air Speed : 0.25-0.60m/s
* Easy installation and filters replacement.
* Simple fixation system.
* Air diffusion through metal grill or stretch fabric.
* Lateral duct connections.

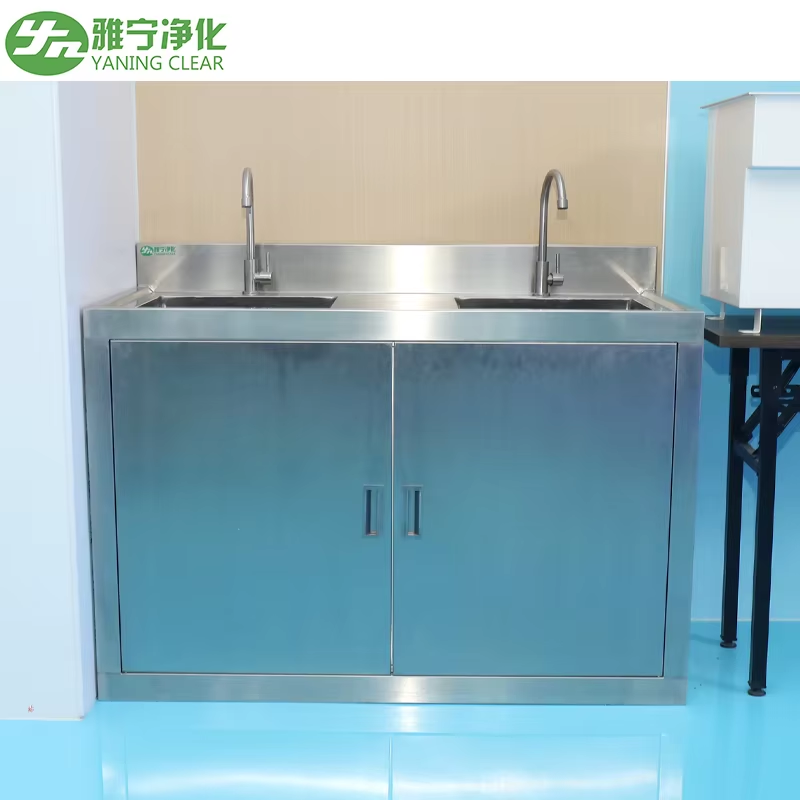

Medical Scmb Sink

①All 304 stainless steel seamlessly welded andpolished, durable

②Meet the requirements of surgical staff cleaningand disinfection operations ③No cleaning dead space, easy to do clean anddisinfect treatment, effectively prevent bacteria breeding ④Equipped with fully automatic sensor faucet toavoid contact and prevent cross infection ⑤Equipped with thermostatic adjustment valve,user can adjust to the suitable temperature

⑥New faucet design, the exteror can be directly removed for cleaning ⑦Leakage protecti on design to ensure the safety of

PLC Control Panel / Door Phone

1. The product has the characteristics of high transparency, high strength and high light transmittance; 2. Compared with the button-type operatingroom control panel，it is more convenient ; 3. International capacitive screen，the surface is tempered glass; 4. Industrial-grade control，system stability, high sensitivity，support for various communications，energy saving and consumption reduction; 5. The flat type is easy to clean and scratch resistant，and it can be touched after being wetted with water，and no dirt can be hidden. 6. It is easy to set and check the working status of various equipment in the operating room，fault conditions，and environmental parameters such as temperature and humidity in the operating room.

Hospital Door

①The surface of the door leaf can be optionallycoated with antibacterial coating to prevent crosscontamination and meet the needs of a sterileenvionment ②Double sealing of leaf and frame with uniquealuminum structure and sealing tape, with goodairight effect ③The door opens and closes quickly,and alsoprovides dual doorinterock function,locking everybit of clean air for you

④A wide range of product styles, materials andglass vlewing window structures are available tomeet customer needs

⑤Automatic swing door features: high qualityimported humanized control and operation of thedrive motor,automatic delayed closing (timeadiustable),also provide automatic,normalopen,normal closed,half open one-way passage and other modes

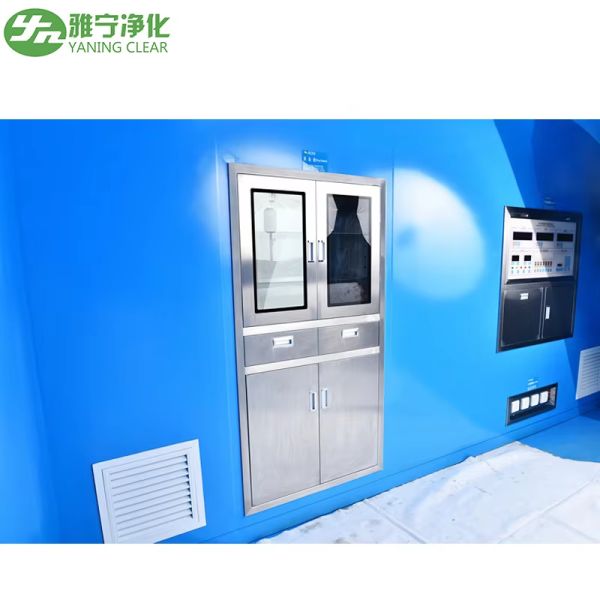

Medical Cabinets

Medical cabinets can be used by medical staff. According to the reasonable regulations of sorting and management classification, all items can be stored in designated medical cabinets. The material is 0.8mm -1.2mm thick SUS304 stainless steel. The structure is firm, eliminating dead ends, easy to clean, easy to use and beautiful in appearance.

Other Materials

Gas Socket Box Power Socket Box Writing Desk X-ray Viewing Box
