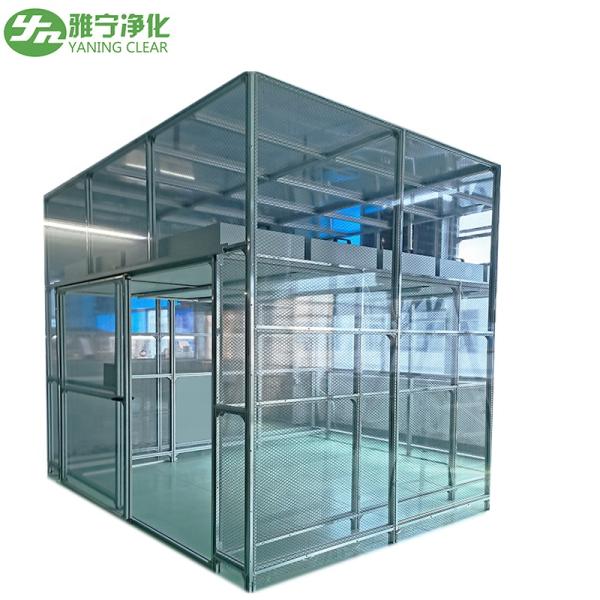

ISO5(Class100) Stainless Steel Frame Custom Size Modular Clean Room Booth for Dust Free Environment

Name: ISO5Class100 Stainless Steel Frame Custom Size Modular Clean Room Booth for Dust Free Environment
Brand: YANING
Price: 6000 USD

Buy cheap ISO5(Class100) Stainless Steel Frame Custom Size Modular Clean Room Booth for Dust Free Environment product

Brand Name : YANING

Place of Origin : Guangdong, China

Certification : ISO9001:2008

MOQ : 1

Price : $6000

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Weight : 300 kg

Frame Material : Stainless Steel

Cleanliness Level : ISO5 (Class100)

Power : 800W

Power Supply : AC220V/50Hz

Noise Level : 62dB(A)

HEPA Filter Efficiency : 99.99%

Air Flow : 4000-12000 m3/h

Motor Power Supply : 220V/50Hz

Curtain Thickness : 40mm

Filter Size : 610x610x69mm to 1220x610x69mm

Clean Class Level : 100 to 100000

Material Options : Powder coated steel, SUS 304, Alu profile

Wall Thickness : 40mm Clear Vinyl

LED Lights : Flat Panel Lights

Contact Now

Class 100 Soft Wall & Hard Wall Clean Room Solutions

Professional clean room tents, sheds, and hoods designed for dust-free work environments with customizable configurations to meet your specific requirements.

Hard Wall Clean Room Systems

Our PVC panel and acrylic panel hard wall clean rooms provide exceptional performance and aesthetic appeal for dustless work environments. The rigid-wall construction supports higher internal air pressures than softwall alternatives, delivering superior contamination control performance.

Wall panels are available in multiple materials with customizable windows and accessories to meet your specific operational needs. Our hard-wall construction withstands the high airflow volumes required for ultra-clean ISO class 5-6 environments, while the durable finish makes them equally suitable for ISO class 7-8 cleanrooms.

The positive airflow system pushes air downward through the cleanroom, efficiently flushing particles out through low-level exhaust vents.

ISO5(Class100) Stainless Steel Frame Custom Size Modular Clean Room Booth for Dust Free Environment

Key Features

Robust, impact-resistant and durable construction
Easy to clean and maintain surfaces
Natural light transmission for optimal working conditions
Choice of doors or softwall strips for entry access
Custom logo printing available on panels
Transparent design allows external oversight of internal processes

Standard Models - Hard Wall Clean Rooms

Model	YNC-1500	YNC-2000	YNC-3000	YNC-4000
Size (mm)	150020002500	200020002500	300020002500	400020002500
Material Options	Powder coated steel / SUS 304 / Aluminum profile / Plexiglass / Soft curtain / Anti-static strip curtain

Clean Booth Solutions

Clean booths provide localized high-clean environments as simple, fast-to-establish clean room alternatives. The top-mounted FFU units intake air, which is filtered and delivered as vertical unidirectional airflow across the entire outlet surface, ensuring required cleanliness levels in the work area.

Hardwall vs Softwall Clean Room Comparison

Hardwall Clean Rooms

Strong support frame and rigid panels constructed from stainless steel, welded steel, acrylic, tempered glass, or PVC
More permanent installation than soft wall alternatives
Superior environmental and contamination control capabilities
Modular construction for efficient assembly and disassembly

Softwall Clean Rooms

Confined controlled space with metal frame, clear panel walls, and specialized entry systems
Fabric walls made from free-hanging plastic strips or tightly stretched fabric over frames
Highly portable and modular design for efficient assembly and disassembly
Equipped with HEPA filtration systems and optimized lighting

Softwall Clean Room Specifications

Model Item	YN-CS1500	YN-CS2000	YN-CS3000	YN-CS5000
Size (mm)	150020002400	200030002400	300040002400	500050002400
Framework Material	Cold rolled steel / Aluminum / Stainless steel
Wall Material	Plexiglass / Soft curtain / Anti-static strip curtain
Clean Class Level	100	1000	10000	100000
HEPA Filter Size (mm)	61061069	122061069	122061069	122061069
HEPA Filter Efficiency	99.99%
Air Flow (m³/h)	4000	5040	7560	12000
Power Supply	220V 50Hz
Noise Level (dB)	62	63	62	63

Key Benefits

Sturdy structure with beautiful, durable finish that resists rust and dust accumulation
Cost-effective clean room solutions with rapid construction timelines
Fully customizable designs to meet specific site space and usage requirements
Optional UV sterilization lamp installation available

Component Specifications

Frame Options:

Aluminum profile
Stainless Steel

Curtain Systems:

40mm thick clear vinyl
Static dissipative materials
Easy-to-use dual lock attachment
Strip doors for convenient access

Filtration & Lighting:

Motorized ceiling H14 HEPA filter units
Variable speed control
Class 100,000 to Class 10 (ISO 8 to ISO 4)
LED flat panel lights
Available flow-thru lights

Recommended Applications & Industries:

Microelectronics
Pharmaceutical
Research and Development
Semiconductor Manufacturing

Success Case Examples

Our Manufacturing Facility

Dongguan Yaning Purification Equipment Co., Ltd is strategically located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. We are an integrated supplier of clean technology solutions, combining technology, R&D, design, manufacturing, sales, and installation services.

Our company employs over 200 professionals, operates from a 30,000+ square meter plant facility, and achieves annual output exceeding 300 million RMB.

With over ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and achieved national high-tech enterprise status. We maintain ISO9001:2015 quality management system certification and ISO14001:2015 environmental management system certification, and have been recognized as a Guangdong "Abide by contracts and keep promises" Enterprise and Famous Brand Enterprise in Guangdong.

Packaging & Delivery

Industry Exhibition Participation

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2011. Our market distribution includes: Domestic Market (60%), Southeast Asia (15%), North America (10%), Western Europe (5%), Southern Europe (5%), and Northern Europe (5%). Our organization employs 101-200 professionals across all operations.

How can we guarantee quality?

We implement comprehensive quality assurance processes including pre-production samples before mass production and final inspection before shipment to ensure consistent product excellence.

What can you buy from us?

Our product portfolio includes: Air Shower systems, Fast Roll Doors, FFU units, Operating Rooms, HEPA Filters, Clean Benches, Scrub Sinks, and related clean room equipment.

Why should you buy from us instead of other suppliers?

YANING brand clean room equipment including air showers, pass boxes, clean benches, FFUs, and softwall clean rooms are backed by comprehensive certifications including ISO14001, ISO9001, TUV, ROHS, CE, and UL. We offer competitive pricing, exceptional service, and rigorous factory testing for every product.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, Express Delivery

Accepted Payment Currencies: USD, EUR, HKD, CNY

Accepted Payment Methods: T/T, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow

Languages Spoken: English, Chinese, Spanish
