Plc 1 Year Air Shower In Pharmaceutical Industry

Brand Name : YN

Model Number : yaning

Place of Origin : guandong

Certification : ISO\ce

MOQ : 10

Price : 1500$

Packaging Details : 7

Delivery Time : 10-15day

Humidity Range : 20-90% RH

Lighting : LED

Power Supply : 220V/50Hz

Control System : PLC

Air Flow : Vertical/Horizontal

Air Velocity : 20-25 M/s

Material : Stainless Steel

Temperature Range : 5-45°C

Contact Now

Air Shower

①G4 pre filter and H13 HEPA filter, 2-stage filtration. Ensure purification level.
②Fully automatic infrared induction blowing.

③Equipped with 360-degree adjustable stainless .steel nozzle.Left and right sides blowing shower,large air volume and low noise centrifugal fan.The air velocity of the nozzle can reach 22-27m/s.

④Adopt LCD time display, air shower time is adjustable from 0-99S, show the completion time of air shower, with humanized voice prompts.

⑤According to the needs of the site, customize the door direction.

Product Description

The air shower is a necessary passage for people to enter the clean room,which can reduce the pollution caused by people entering and leaving the clean room. It is a kind of local purification equipment with strong versatility, which is installed between the clean room and the non-clean room. When personnel want to enter the clean area, they need to be showered through the air shower. The clean air blown out can remove the dust carried by the personnel, and can effectively block and reduce the dust source from entering the clean area. At the same time, the front and rear doors are electronically interlocked, which can also act as an airlock to control the outside polluted air entering the clean area. This equipment is widely used in biological laboratories, pharmaceutical factories, hospitals, food processing, electronics factories, painting and other air purification places. Our company produces a fully automatic high-tech intelligent air shower room with a voice prompt system. When people enter the air shower, the automatic voice system prompts people to complete the entire process of blowing, showering and dust removal in an orderly manner. Humanized voice prompts give people a kind of cordial feeling, and achieve an effective purification effect.

Configuration Options

1.According to the material requirements: Powder coated steel, Polish SUS 201/304/316; Mirror SUS 201/304/316 2.According to powersupply requirements: voltage 220V/380V, frequency 50Hz/60Hz. Number of phases: single-phase / three-phase; 3.According to therequirements of blowing: single blow, top blow, double blow, three blow; 4.According to the number of people:
single person,double person,multiple people. 5.According to the door requirements: manual doors,automatic 90 degree doors, sliding doors, fastrolling shutter doors. curtain doors, no doors, etc.
6.According to the requirements of use: manual door, automatic door, S type,L type,three-doors air shower, bufferroom, etc.

Products Description

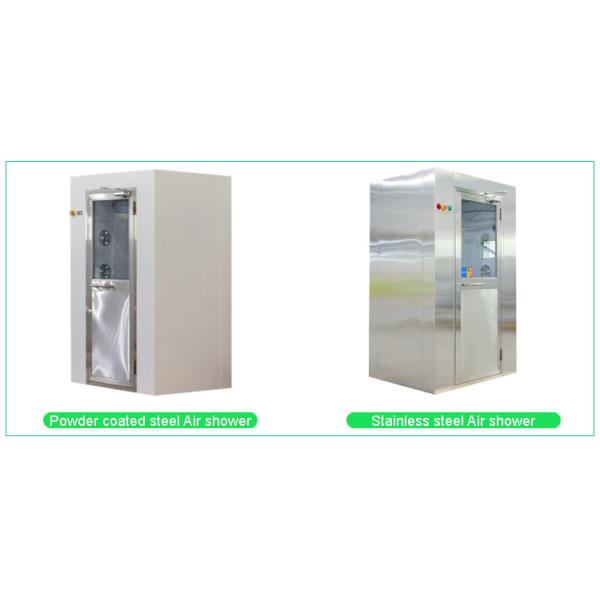

Powder coated steel Air shower

Stainless steel Air shower

Product Parameters
Product Name	Single Person Double Blow	Two Person Double Blow	Three Person Double Blow	Air shower Tunnel
Product Model	YN-FLS-01	YN-FLS-02	YN-FLS-03	YN-FLS-04
Outside DimensionsW×D×H(mm)	1290×1000×2130	1290×1500×2130	1290×2000×2130	1290×3000×2130
Internal Size W×D×H(mm)	790×880×1925	790×1380×1925	790×1880×1925	790×2880×1925
Suitable Person	1-2 Person	2-3 Person	3-4 Person	4-5 Person
Nozzle	12 Pcs	18 Pcs	24 Pcs	36 Pcs
Air Velocity	22-27m/s	22-27m/s	22-27m/s	22-27m/s
Noise	＜65 dB (A)	＜65 dB (A)	＜65 dB (A)	＜65 dB (A)
G4 Pre filter size(mm)	745×375×21×2 Pcs	900×375×21×2 Pcs	745×375×21×2 Pcs	745×375×21×3 Pcs
H13 Hepa filter size(mm)	610×610×69×1 Pcs	610×610×69×2 Pcs	610×610×69×2 Pcs	610×610×69×3 Pcs
Filter Efficiency	99.95%@0.3μm	99.95%@0.3μm	99.95%@0.3μm	99.95%@0.3μm
Fan Power(W)	1100W×1 Pcs	750W×2 Pcs	1100W×2 Pcs	1100W×3 Pcs
LED Lamp Power(W)	15W×1 Pcs	15W×1 Pcs	15W×2 Pcs	15W×3 Pcs
Power Supply		Three-phase,380V/50Hz

Single Person Double Blow
Outside Dimensions W×D×H(mm)	1290×1000×2130
Internal Size W×D×H(mm)	790×880×1925
Nozzle	12 Pcs
Fan Power(W)	1100W×1 Pcs

Two Person Double Blow
Outside Dimensions W×D×H(mm)	790×880×1925
Internal Size W×D×H(mm)	790×1380×1925
Nozzle	18 Pcs
Fan Power(W)	750W×2 Pcs

Three Person Double Blow
Outside Dimensions W×D×H(mm)	1290×2000×2130
Internal Size W×D×H(mm)	790×1880×1925
Nozzle	24 Pcs
Fan Power(W)	1100W×2 Pcs

Air shower Tunnel
Outside Dimensions W×D×H(mm)	1290×3000×2130
Internal Size W×D×H(mm)	790×2880×1925
Nozzle	36 Pcs
Fan Power(W)	1100W×3 Pcs

Detail Image

Success case show

Our Factory

Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than 30,000 square meters, and an annual output value of more than 300 million RMB.

Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and
has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong

Packing&Delivery

Packaging

The product is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.

shipping

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Exhibition

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 200 people in our office.Our company and factory are located in Dongguan City, Guangdong Province, China. We welcome you to visit us at your convenience to learn about our factory and products.

2.What can you buy from us?
Air Shower, Cargo Air Shower,PVC Fast Rolling Shutter Door,HEPA Box , FFU,BFU, Pass Box, Clean Bench,Clean Booth,Operating Room,Medical Cabinets,Laminar Flow Ceiling,Medical Scrub Sink,AIR FILTER.

3.How long is your delivery time?Normally 10-15 days for small bulk after get payment and specification confirmed, delivery is differ from different equipments and qty for bulk production.

4. What's your payment terms?
50% deposit after PI confirmed and balance 50% should be paid before shipment. If the order's total amount below $5000, It should be paid 100% in advance.

5. Do you provide samples?
Yes, we can provide sample, but the customer should be pay sample fee and shipment cost. The sample fee can be refund after official order placed for same models.
